Logan & San Miguel Railroad Early Paint Schemes

I originally posted paint schemes for my model railroad on my website when I started it in November 2002, and last updated them on June 22, 2008. I made some of these images for earlier versions of the roster, so not all of them are applicable anymore.

linklogoHere are a selection of Logan & San Miguel paint schemes, from some of the road's earliest equipment to the early diesel era.

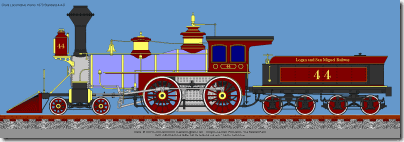

LSM 4-4-0
4-4-0 Steam Locomotive, circa 1885

LSM old time coach
Passenger Coach, circa 1885

LSM 2-8-0
2-8-0 Steam Locomotive, circa 1890

LSM 2-8-0 late
2-8-0 Steam Locomotive, circa 1900

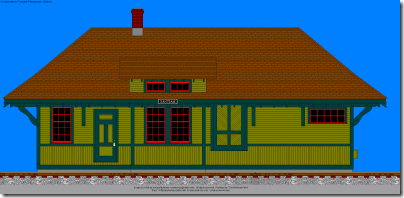

Santiam Depot - Early Paint
Santiam Depot, pre-1910.

Santiam Depot
Santiam Depot, post-1910.

LSM 2-8-2
2-8-2 Steam Locomotive, circa 1920

LSM pacific early
4-6-2 Steam Locomotive, circa 1920-1960

LSM motorcar
Motorcar, circa 1920-1960

LSM hwt_observation
Heavyweight Passenger Car, circa 1920-1970

LSMaarbox-early
40-Foot Boxcar, circa 1940

LSMaarbox-UP
40-Foot Boxcar with Union Pacific-style Lettering

LSM_wood_caboose
Wood Caboose with Union Pacific-style lettering

prototype
“Proposed” 1957 diesel paint scheme (never used)

LSM_F7A
EMD F7-A scheme circa 1963. (First applied to F3s in 1957. Seen as late as 1980.)

LSM_F-unit_ends_revised
EMD F7-A scheme circa 1963. Front & rear view

LSM F7s
Full A-B-A set of F7s, circa 1963

LSM_fa-1
Alco FA-1 scheme circa 1964. (Seen as late as 1978.)

LSM FAs
Full A-B-A set of Alco FAs, circa 1964

LSM_pa1-a
Alco PA-1 scheme, circa 1958-1973

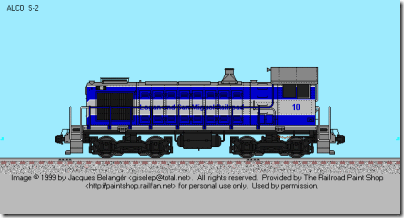

LSM_s-2
Original switcher paint scheme on an Alco S-2, circa 1963-1966

LSM_rs3
Road-switcher scheme circa 1960-1966. (Seen as late as 1973.)

LSM-H10
Original switcher paint scheme on an H10-44, circa 1963-1966.

LSM autobox
50-Foot Boxcar, circa 1960s

LSM H10
This H10-44 shows one of the simplified paint schemes for the Logan & Sam Miguel Railroad.

LSM F7
This F7A shows a simplified version of the L&SM paint scheme.

LSM GP-20
This GP20 shows one of the first simple paint schemes, with initials replacing the road name.

rps-link-4

See the Next Post for Logan & San Miguel Paint Schemes from the modern era.

Continue to Logan & San Miguel Railroad Late Paint Schemes
